High strength tubular rafters and cross bars to sustain wind load and snow load requirements.
Exterior stainless steel screws.
Neoprene bonded washers used with all pressure plate screws to prevent water seepage through screw holes.
Entire system is thermally broken aluminum to insulate the cold temperature outside from a warmer temperature inside and to help eliminate condensation.
1" insulated tempered glass is standard.
Large 40 1/4" radius (as opposed to approximate 24" radius by other manufacturers) on all curved eave models enhances the beauty of the sunroom.
Concealed fasteners and connecting clips.
No unsightly inner or outer seams on structural components.
7/8" rabbet depth covering glass promoting greater weather-tightness and reducing glass sealant damage from the sun's ultraviolet rays.
1/4" edge clearance between metal and glass at perimeter of the glass panels to promote moisture dehydration at insulated glass edges.
Dual glazing system of the finest E.P.D.M. rubber gaskets with a secondary exterior wet sealant around the perimeter of all glass panels to prevent air and water infiltration.

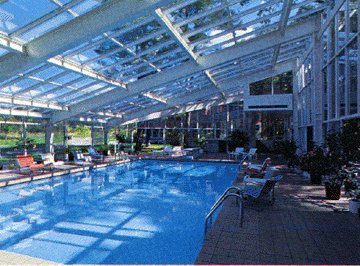

Long Island Residence, New York
Glazing Contractor: Levitt Bros.
Architect: P.H. Taun Associates

Heavy duty extruded anchor clips and shear blocks at all connections.
Continuous thermally broken sill with integral water barrier that promotes positive water drainage eliminating water accumulation under the glass, a major cause of glass sealant failure.
The all new KLEERTEK(tm) Glazing system for curved and straight eave units eliminates horizontal exterior roof caps.
Both primary and secondary condensation gutters to channel any condensation to the exterior.
Full 1/2" wide cushioned bearing surface for insulating glass, reducing the possibility of glass failure.

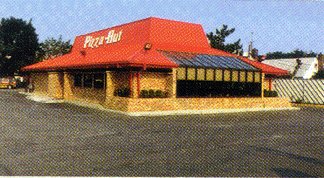

Pizza Hut, Bellerose, New York
Glazing Contractor: Clearview Plate Glass
